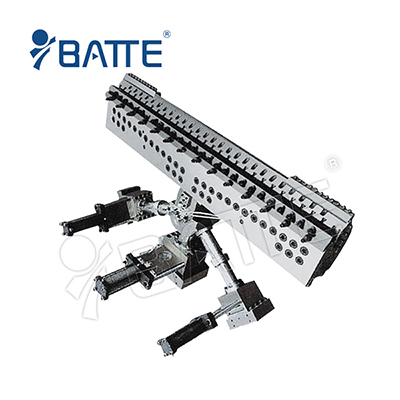

Co-extrusion Die

Application field

shoes,bage,Oxford cloth ,tarpaulins

Technical data

Item	Specification
Die steel	P20/5CrNiMo
Material	PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
Width of the die	500mm-5000mm adjustable
Thickness of the product	5-20mm
Choked flow rope	90°
Way of flow passage	clothes rack type
Voltage	220V/50hz
Heating type	heating inside
Heater element	stainless steel heating rod
Mode of connection	closed cycled connection
Fastening piece	12.9 high strength
Precision of polishing	Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization	the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation	according costumer’s request
Way of charging	central ring charging way

Item	Specification
Die steel	P20/5CrNiMo
Material	PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
Width of the die	500mm-5000mm adjustable
Thickness of the product	5-20mm
Choked flow rope	90°
Way of flow passage	clothes rack type
Voltage	220V/50hz
Heating type	heating inside
Heater element	stainless steel heating rod
Mode of connection	closed cycled connection
Fastening piece	12.9 high strength
Precision of polishing	Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization	the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation	according costumer’s request
Way of charging	central ring charging way
